SystemShield Standard Mounting Hardware Kit

SystemShield Standard Mounting Hardware Kit

Short Description

Controlled mounting hardware kit for SystemShield grounding-bar, cabinet, enclosure, rack, rail, and equipment installations. This kit combines the approved SystemShield mounting hardware families into one organized package, including 12-24, 1/4"-20, 10-32, 10-24, M5, M4, #10 universal washers, and cage-nut hardware for supported installation conditions.

Product Overview

The SystemShield Standard Mounting Hardware Kit is the primary controlled hardware sub-assembly used to support mounting and installation across the standard SystemShield product line. Its function is to provide the supported machine-screw, bolt, nut, washer, and cage-nut families needed for grounding-bar mounting and related cabinet, enclosure, rack, and equipment installation points.

This hardware kit intentionally includes multiple thread families because the supported mounting environments may vary between cabinet hardware, enclosure panels, rail systems, square-hole rack structures, and equipment attachment points. The kit is therefore not a single-fastener product. It is a controlled mixed-hardware sub-assembly designed to support the approved SystemShield installation framework.

The included hardware families align with the approved individual product entries already locked in your catalog, including 12-24 × 1 in Phillips pan head machine screws, 1/4"-20 × 1 in hex head bolts, 1/4"-20 hex nuts, 1/4 in split lock washers, 10-32 × 1/2 in Phillips pan head machine screws, 10-24 × 1/2 in Phillips pan head machine screws, M5 × 12 mm pan head machine screws, M4 × 12 mm pan head machine screws, #10 Universal Machine Screw Washers, and Cage Nut with Screws & Washer (Complete Set).

This kit should therefore be treated as the primary mounting-hardware source for supported SystemShield finished products rather than as a generic loose hardware assortment.

Key Features

• Controlled mounting hardware sub-assembly for SystemShield installations
• Combines multiple approved thread families in one managed hardware kit
• Supports grounding-bar, cabinet, enclosure, rack, rail, and equipment mounting conditions
• Includes both inch and metric machine-fastener families where required
• Includes #10 Universal Machine Screw Washers as the active compact washer standard
• Includes cage-nut hardware for compatible square-hole rail applications
• Structured for controlled packaging inside larger finished SystemShield kits
• Functions as the mounting-hardware backbone for the standard finished kit configuration

Technical Specifications

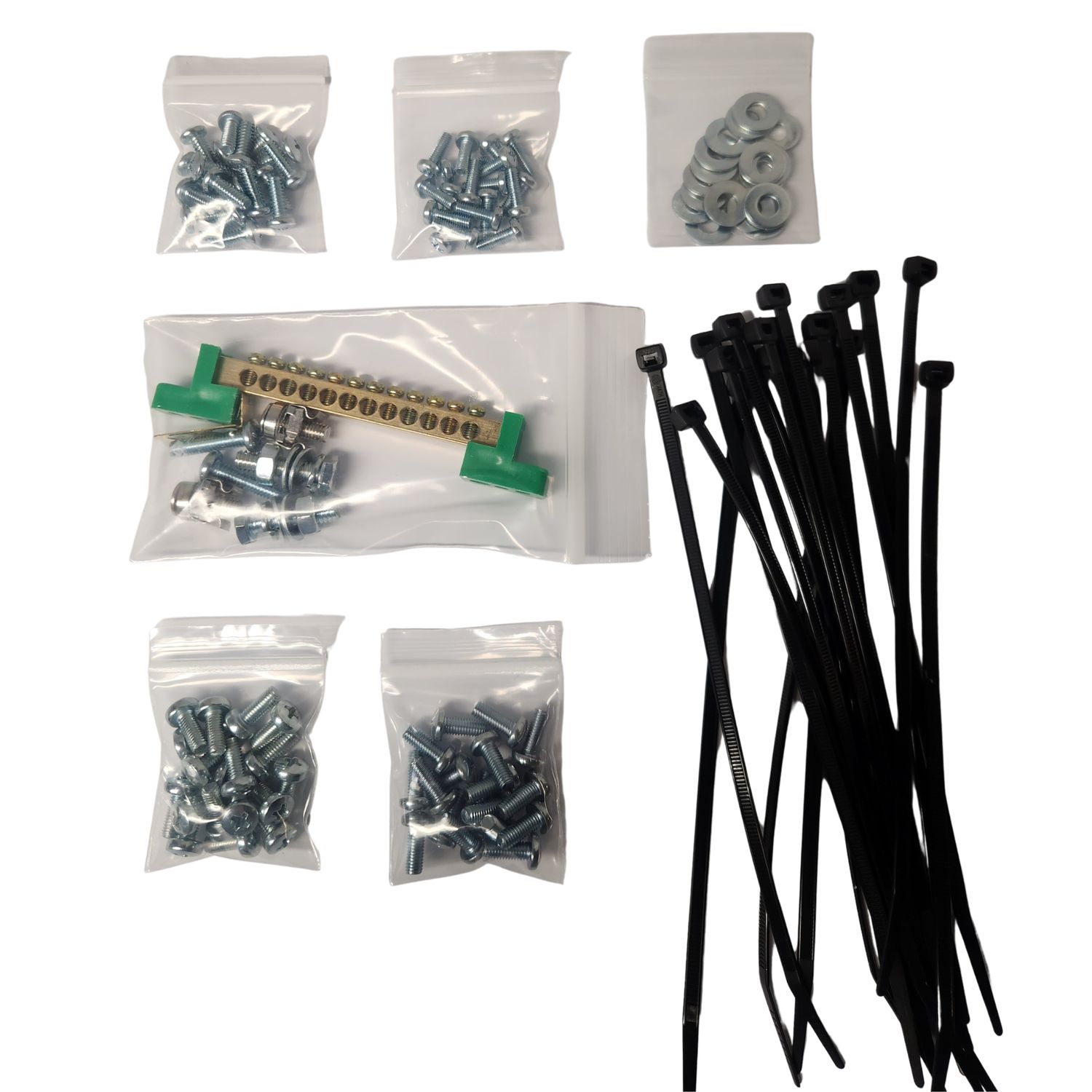

What’s Included

• (2) 12-24 × 1 in Phillips Pan Head Machine Screw
• (2) 1/4"-20 × 1 in Hex Head Bolt
• (2) 1/4"-20 Hex Nut
• (2) 1/4 in Split Lock Washer
• (18) 10-32 × 1/2 in Phillips Pan Head Machine Screw
• (18) 10-24 × 1/2 in Phillips Pan Head Machine Screw
• (18) M5 × 12 mm Pan Head Machine Screw
• (18) M4 × 12 mm Pan Head Machine Screw
• (22) #10 Universal Machine Screw Washer
• (2) Cage Nut with Screws & Washer (Complete Set)

Typical Applications

• Mounting a grounding bar or related hardware inside cabinets and enclosures
• Supporting rail- and panel-based installations where multiple hardware thread families may be encountered
• Equipment bracket and accessory mounting
• Rack and cabinet mounting where captive square-hole hardware may be required
• Controlled packaging of standard mounting hardware for finished SystemShield kit assemblies
• Field-installation hardware support for SystemShield finished products

Compatibility

• 12-Position Brass Grounding Bar on Insulated Base
• Cabinet, enclosure, rack, and equipment mounting points designed for the included hardware thread families
• Square-hole rail installations using compatible cage-nut hardware families
• SystemShield Grounding Kit (Standard), where this hardware kit is a primary included sub-assembly
• Supported SystemShield mounting locations requiring any of the included 12-24, 1/4"-20, 10-32, 10-24, M5, or M4 hardware formats

Installation Notes

1. Use only the hardware items that match the actual receiving thread, mounting surface, rail type, and equipment flange requirements of the installation point. Because this kit intentionally includes multiple hardware families, the installer must select the correct fastener type rather than assuming all included items are interchangeable.
2. For square-hole rack or cabinet rails, cage-nut hardware should only be used where the rail opening and thread-family selection match the intended installation.
3. Verify thread-family match, fastener length, washer selection, cage-nut need, and mounting-surface suitability before installation.

Compliance & Regulatory Information

This product is described here as a controlled mounting-hardware sub-assembly built from approved individual SystemShield hardware entries. The kit inherits the practical dimensional and material identities of those included hardware classes, but it should not be treated as a single unified fastener specification because it intentionally includes multiple hardware families.

It should be used only as part of a properly designed assembly and within the limits of the exact included hardware and installation environment.

Packaging & Handling

• Protect against thread damage
• Protect against plating damage
• Protect against hardware-family mixing or loss
• Protect against contamination and corrosion from improper storage conditions

Store in a clean, dry environment before installation. Keep the included hardware organized by family so the correct pieces are selected during installation.

Notes / Limitations

This product is a hardware sub-assembly, not a complete finished grounding system.

• Final suitability depends on correct hardware-family selection
• Correct thread match is required
• Correct stack-up selection is required
• Proper installation practices are required
• Actual application requirements must be verified
