SystemShield Grounding Kit — Standard

SystemShield Grounding Kit (Standard)

Short Description

Complete grounding kit built for structured grounding and bonding installations using pre-prepared conductors, a compact 12-position brass grounding bar on insulated base, organized mounting hardware, and cable-management ties. This finished SystemShield kit groups the primary grounding components and supporting hardware into one controlled installation package.

Product Overview

The SystemShield Grounding Kit (Standard) is the primary finished grounding-kit product in the SystemShield catalog. It is built as a controlled finished kit, not as a loose collection of unrelated field parts. That means the key grounding conductors, grounding bar, mounting hardware, and cable-management items are intentionally grouped together to support a more consistent installation workflow and cleaner packaging structure.

This finished kit is centered around a defined conductor arrangement that includes multiple pre-cut #12 AWG grounding conductors and one larger #6 AWG grounding conductor, paired with a 12-position brass grounding bar on insulated base and the full SystemShield Standard Mounting Hardware Kit. The included cable ties provide bundle retention and conductor organization during staging, packaging, and installation.

The included grounding-bar class is a compact 12-position brass bar on insulated base, not a large telecom standoff busbar. The included cable-tie class is a black nylon zip tie in the 8 in to 12 in family. Those are component-level identities for included parts, not certification claims for the complete kit.

This finished kit is intended for cabinet, enclosure, rack, rail, and equipment grounding applications where the installer needs a ready-grouped grounding package instead of sourcing the wire assemblies, grounding bar, mounting hardware, and ties separately.

Key Features

• Finished grounding kit built from approved SystemShield conductors, grounding bar, mounting hardware, and cable-management components
• Includes pre-prepared conductor assemblies rather than raw loose wire
• Includes a 12-position brass grounding bar on insulated base as the primary conductor landing point
• Includes the full SystemShield Standard Mounting Hardware Kit as the mounting-hardware backbone
• Includes multiple cable ties for conductor bundling and routing
• Structured as a controlled finished kit rather than separately sourced field parts
• Supports cabinet, enclosure, rack, rail, and equipment grounding installation contexts
• Built as the primary standard finished grounding-kit product in the SystemShield catalog

Technical Specifications

What’s Included

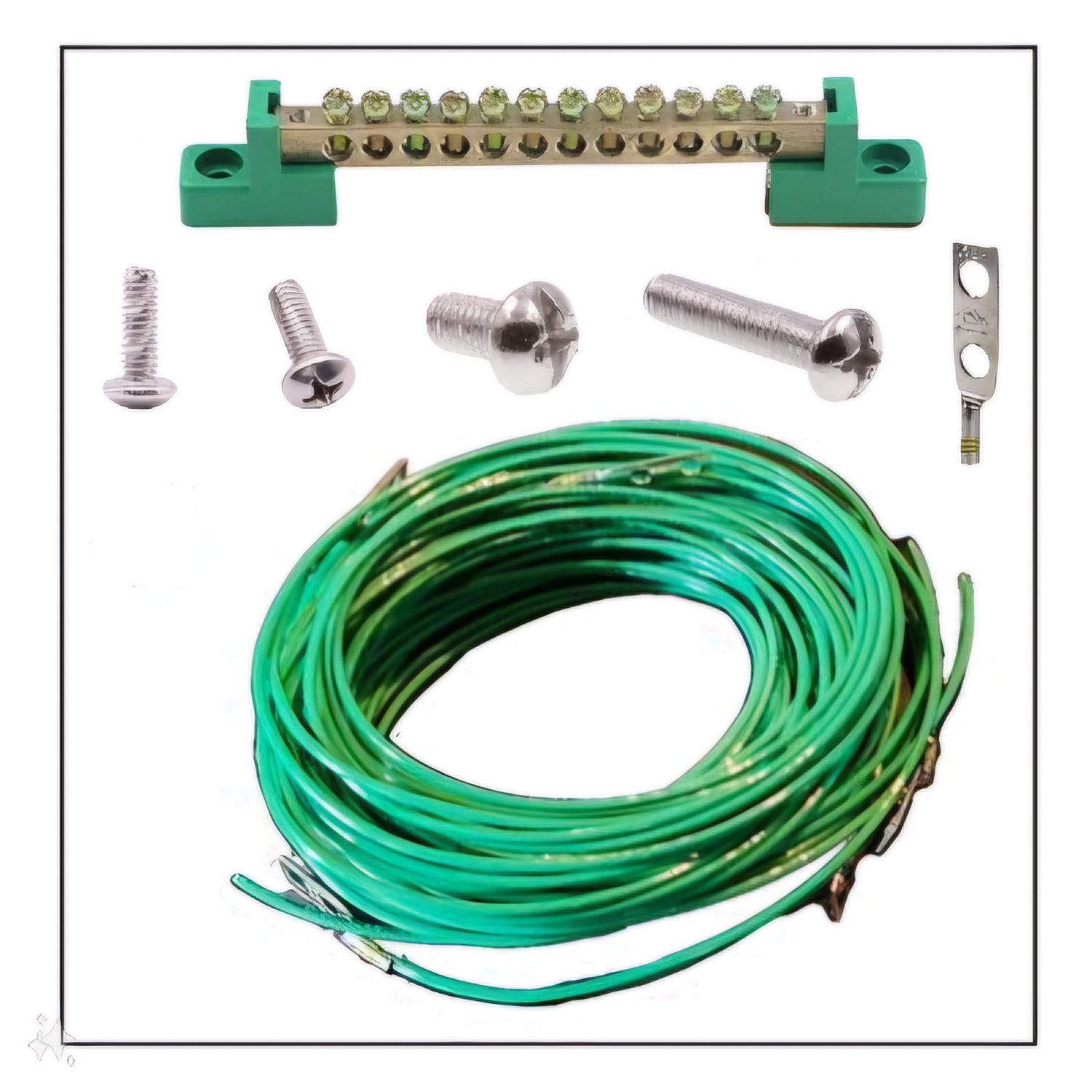

• (9) #12 AWG Green THHN/THWN-2 Stranded Copper — 9 ft — Pre-Stripped, Pre-Crimped One End
• (1) #6 AWG Green THHN/THWN-2 Stranded Copper — 20 ft — Pre-Stripped, Pre-Crimped One End
• (1) 12-Position Brass Grounding Bar on Insulated Base
• (1) SystemShield Standard Mounting Hardware Kit
• (18) Black Nylon Zip Tie — 8 in to 12 in

Typical Applications

• Cabinet grounding installations
• Enclosure grounding and bonding
• Rack and rail grounding layouts
• Equipment grounding conductor organization
• Structured grounding packages for installation staging and deployment
• SystemShield finished-kit use where a grouped standard grounding package is preferred over separately sourced parts

Compatibility

• Cabinet, enclosure, rack, rail, and equipment grounding points designed for the included conductor and mounting-hardware classes
• 12-Position Brass Grounding Bar on Insulated Base as the primary conductor landing component
• SystemShield Standard Mounting Hardware Kit as the primary mounting-hardware sub-assembly
• Grounding applications requiring multiple pre-prepared conductor assemblies and one larger primary grounding conductor
• Structured SystemShield installations that require a complete standard grounding kit rather than separate loose components

Installation Notes

1. Use only the included conductors, grounding bar, mounting hardware, and cable-management items in installation conditions that match the actual cabinet, enclosure, rack, rail, or equipment geometry involved.
2. Because this is a finished mixed-component kit, the installer must select the correct included hardware items for each mounting point rather than assuming every included fastener is interchangeable across all locations.
3. Verify conductor routing, grounding-bar placement, hardware-family selection, mounting-surface compatibility, and application requirements before installation.

Compliance & Regulatory Information

This product is a finished SystemShield kit built from approved parts and controlled sub-assemblies. Component-level families within the kit may have their own dimensional, material, and family-reference characteristics, but those component references should not be treated as blanket certification claims for the complete finished kit unless the exact complete kit has its own separate approval basis.

It should be used only as part of a properly designed grounding or bonding system and within the limits of the exact included components and installation environment.

Packaging & Handling

• Protect against conductor insulation damage
• Protect against lug damage and contamination
• Protect against grounding-bar deformation or base damage
• Protect against mixed-hardware loss or mis-sorting
• Protect against contamination and corrosion from improper storage conditions

Store in a clean, dry environment before installation. Keep included parts organized so the correct conductor, hardware, and mounting components are selected during installation.

Notes / Limitations

This product is a finished grounding kit, not a building-wide grounding system by itself.

• Final suitability depends on correct application and installation context
• Correct hardware selection from within the included mounting kit is required
• Correct conductor routing and landing are required
• Proper installation practices are required
• Actual application requirements must be verified
