SystemShield HTAP Mini Hardware Kit

SystemShield HTAP Mini Hardware Kit

Short Description

Compact mounting hardware kit built for the SystemShield HTAP assembly context, combining the small-format machine screws, flat washers, and cage-nut hardware needed for mixed rail, cabinet, enclosure, and equipment mounting conditions. This kit is structured as a controlled sub-assembly so the primary mini hardware needed for the HTAP configuration is already grouped and count-controlled.

Product Overview

The SystemShield HTAP Mini Hardware Kit is a smaller controlled hardware sub-assembly intended for HTAP-based SystemShield installations where only a reduced set of mounting hardware is needed. Instead of carrying the full mixed-hardware range of the standard mounting kit, this mini kit focuses on the screw and washer classes most relevant to the HTAP assembly and compact mounting conditions.

This kit is designed to support mixed mounting environments where the installer may encounter different equipment-thread formats and, in some cases, square-hole rail or cabinet mounting conditions. That is why the kit includes multiple machine-screw thread families and matching washer support rather than a single-thread-only configuration.

The included captive mounting hardware class aligns with current square-hole rack and cabinet hardware families. Current rack-hardware references show common cage-nut systems are used with 10-32, 12-24, and M6 thread systems in square-hole punched rails and cabinets.

This mini kit is intended to function as the compact mounting-hardware backbone for the HTAP finished-product configuration, giving the installer the required small-format mounting hardware in one managed package.

Key Features

• Compact mounting hardware sub-assembly for HTAP-related installations
• Includes multiple small-format thread-family fasteners to support mixed equipment and mounting conditions
• Includes machine screws, flat washers, and cage-nut hardware in one controlled package
• Supports cabinet, enclosure, rack, rail, and equipment mounting applications
• Reduces loose-part handling during installation and packaging
• Built around common rack and equipment mounting thread families used in square-hole and standard hardware environments
• Includes captive mounting hardware aligned with current square-hole rack/cabinet cage-nut systems
• Structured as a reusable SystemShield hardware-kit sub-assembly for the HTAP finished-kit build

Technical Specifications

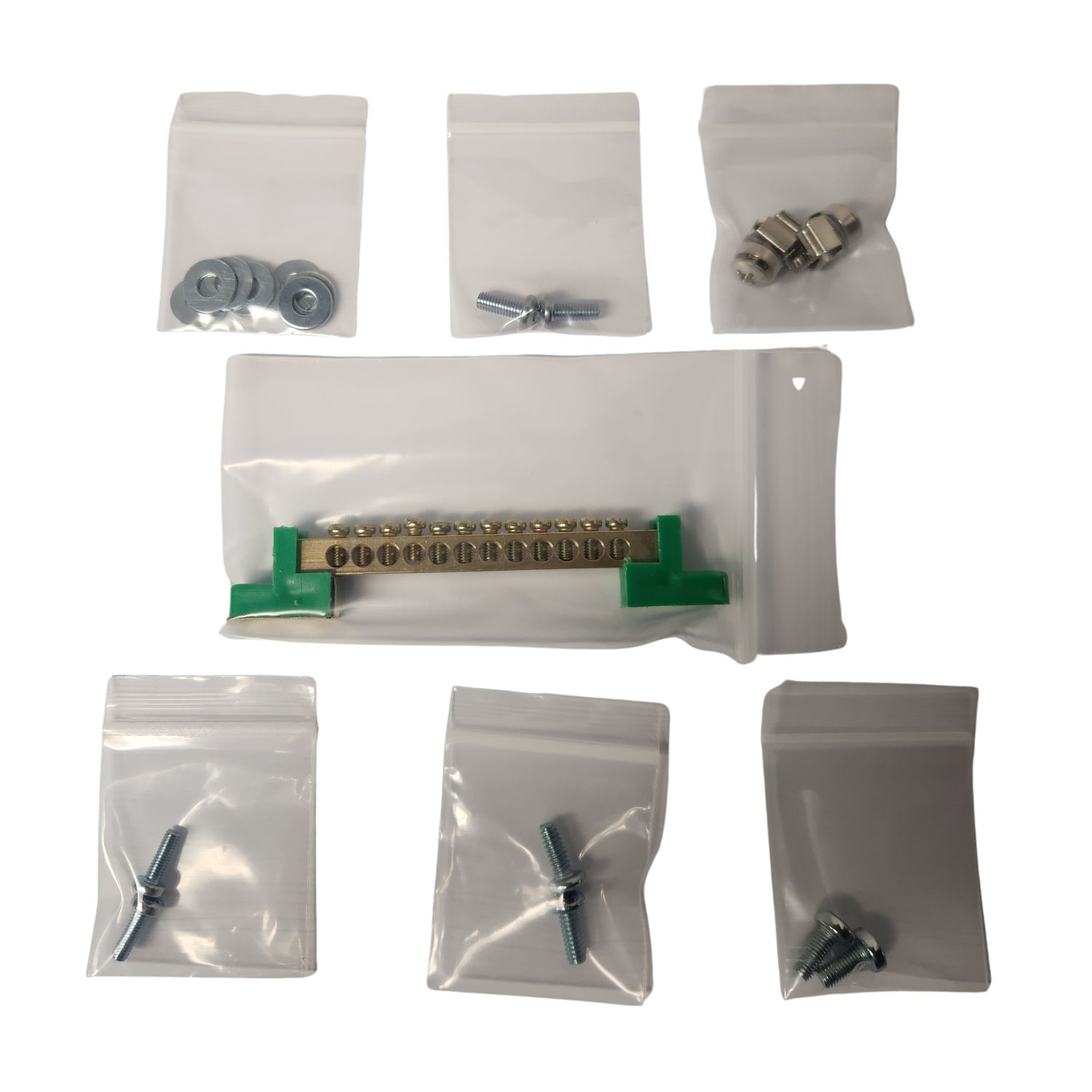

What’s Included

• (2) 10-32 × 1/2 in Phillips Pan Head Machine Screw
• (2) 10-24 × 1/2 in Phillips Pan Head Machine Screw
• (2) M5 × 12 mm Pan Head Machine Screw
• (2) M4 × 12 mm Pan Head Machine Screw
• (8) #10 Universal Machine Screw Washer
• (2) Cage Nut with Screws & Washer (Complete Set)

Typical Applications

• Supporting HTAP-related mounting and retention points inside cabinets and enclosures
• Small-format rail- and panel-based installations where multiple hardware thread families may be encountered
• Equipment bracket and accessory mounting
• Rack and cabinet mounting where captive square-hole hardware may be required
• Controlled packaging of compact mounting hardware for finished SystemShield HTAP kit assemblies
• Field-installation hardware support for SystemShield HTAP finished products

Compatibility

• Dual-Rated CU/AL Compression H-Tap — 1/0 Run to 6 AWG Tap in the broader HTAP installation context
• Snap-On Insulating Cover — Matched to H-Tap in the broader HTAP installation context
• Cabinet, enclosure, rack, and equipment mounting points designed for the included hardware thread families
• Square-hole rail installations using compatible cage-nut hardware families
• SystemShield HTAP Kit — 3FT, where this mini hardware kit is a primary included sub-assembly
• Supported SystemShield mounting locations requiring any of the included 10-32, 10-24, M5, or M4 hardware formats

Installation Notes

1. Use only the hardware items that match the actual receiving thread, mounting surface, rail type, and equipment flange requirements of the installation point. Because this kit intentionally includes multiple hardware families, the installer must select the correct fastener type rather than assuming all included items are interchangeable.
2. For square-hole rack or cabinet rails, cage-nut hardware should only be used where the rail opening and thread-family selection match the intended installation. Current rack-hardware references show that this hardware class is specifically tied to square-hole punched rail systems and commonly supplied in 10-32, 12-24, and M6 families.
3. Verify thread-family match, screw length suitability, washer stack-up requirements, cage-nut rail compatibility where applicable, and application requirements before installation.

Compliance & Regulatory Information

This product is a hardware sub-assembly composed of multiple fastening components. Individual hardware classes within the kit correspond to established commercial fastener and rack-hardware families, including square-hole cage-nut hardware used in current rack/cabinet systems.

Because this is a mixed hardware kit, final suitability and compliance depend on the exact installation context, the selected included hardware item, and the design requirements of the assembly being mounted.

Packaging & Handling

• Protect against mixed-hardware count loss
• Protect against thread damage
• Protect against plating damage
• Protect against cage-nut deformation
• Protect against contamination of hardware surfaces

Store in a clean, dry environment before installation. Do not use damaged hardware with deformed threads, damaged drive recesses, bent cage nuts, or visibly compromised washers.

Notes / Limitations

This product is a controlled hardware sub-assembly, not a finished grounding product.

• Final suitability depends on correct hardware selection from within the kit
• Correct receiving thread and mounting format are required
• Correct rail compatibility is required where cage nuts are used
• Proper installation practices are required
• Actual application requirements must be verified
