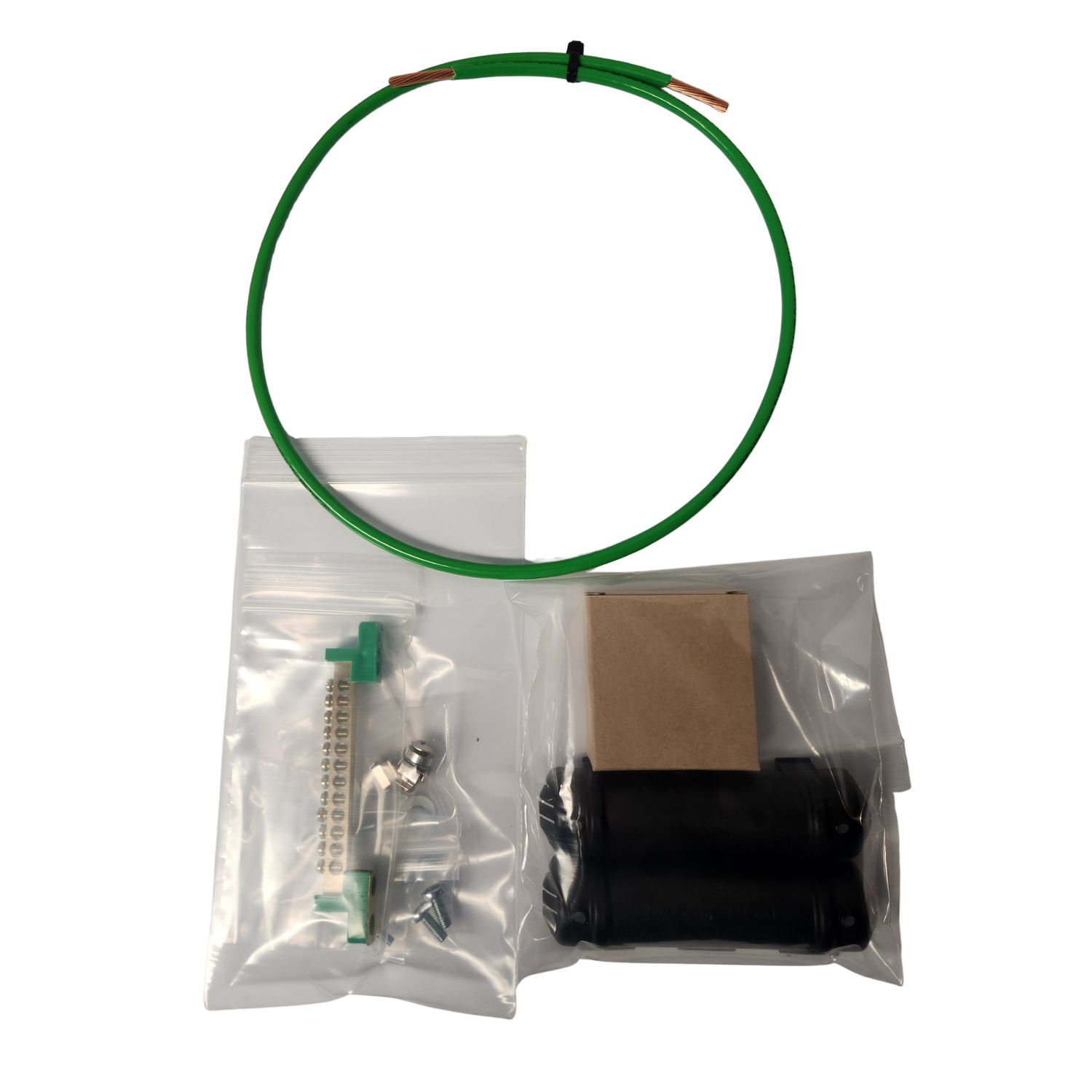

SystemShield HTAP Grounding Kit — 3 ft
$59.39
Dual-rated CU/AL compression H-tap with clear cover and 3 ft #6 green lead; inhibitor & prep pad included; mini hardware set.
In stock: 20 available
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
SystemShield HTAP Grounding Kit — 3 ft
Product Details
SystemShield HTAP Kit — 3FT
Short Description
Compact HTAP grounding and bonding kit built around a pre-grouped compression H-tap connector sub-assembly, a 3 ft #6 AWG prepared conductor, a 12-position brass grounding bar on insulated base, compact mounting hardware, and cable-management ties. This finished kit is structured as a controlled SystemShield installation package for compact run-to-tap grounding and bonding applications.
Product Overview
The SystemShield HTAP Kit — 3FT is the finished HTAP-based compact kit product in the SystemShield catalog. It is built as a controlled finished kit, not as a loose assortment of connector, wire, bar, and hardware parts. That means the required HTAP connector package, conductor, grounding bar, compact mounting hardware, and cable-management items are intentionally grouped into one managed installation set.
This finished kit is centered around the SystemShield HTAP Connector Sub-Assembly, which combines a wide-range compression H-tap and its matched insulating cover. Current matching connector-family listings support the compression-tap class as a wide-range aluminum compression tap with 600 V rating, standard compression tools and dies, formable ribs, fold-in tabs, and reversible construction. Current matching cover-family listings support the matched cover as a hinged insulating cover for WRD series D-die taps up to 2-1/2 in long, with dual rated insulated, drain ports, and ultraviolet stabilization.
The finished kit also includes a #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends conductor, a 12-position brass grounding bar on insulated base, the compact SystemShield HTAP Mini Hardware Kit, and black nylon zip ties for bundle retention and routing. The included grounding-bar class is a compact insulated-base brass grounding / terminal bar, not a large standoff telecom busbar. Current market listings for this compact class consistently show 12-position brass bars on insulating bases with representative dimensions around 120 to 122 mm length depending on exact supplier version.
The included cable-tie class is a black nylon 6.6 tie in the 8 in to 12 in family. Current matching technical listings for this class show typical component-family properties such as 50 lb minimum loop tensile strength, UL 94 V-2 flammability classification, operating range around -40°C to +85°C, and references to ANSI/UL 62275 and CSA C22.2 No. 62275. Those are component-level family properties for the included tie class, not certification claims for the complete finished kit.
Key Features
- Finished HTAP grounding and bonding kit built from approved SystemShield components and sub-assemblies
- Centered around the SystemShield HTAP Connector Sub-Assembly as the primary run-to-tap connector package
- Includes a compact 3 ft #6 AWG prepared conductor for the HTAP installation context
- Includes a 12-position brass grounding bar on insulated base as the primary landing point
- Includes the SystemShield HTAP Mini Hardware Kit as the compact mounting-hardware backbone
- Includes black nylon cable ties for bundle retention and routing
- Structured as a controlled finished kit rather than separately sourced loose parts
- Built as the primary compact HTAP finished-kit product in the SystemShield catalog
Technical Specifications
| Specification | Details |
|---|---|
| Component Type | Finished product kit / grounding and bonding kit |
| Kit Function | Compact HTAP-based grounding and bonding installation package |
| Primary Connector Package Included | SystemShield HTAP Connector Sub-Assembly |
| Primary Conductor Included | #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends |
| Primary Grounding Bar Included | 12-position brass grounding bar on insulated base |
| Grounding Bar Class | Compact insulated-base grounding / terminal bar, not large standoff telecom busbar |
| Mounting Hardware Included | SystemShield HTAP Mini Hardware Kit |
| Cable Management Included | Black Nylon Zip Tie — 8 in to 12 in |
| Cable Tie Family Notes | Black nylon 6.6 tie family; typical component-family properties in this size range include 50 lb class tensile strength, UL 94 V-2, ANSI/UL 62275, and CSA C22.2 No. 62275 references |
| Installation Environment | Cabinet, enclosure, rack, rail, panel, and equipment grounding / bonding applications |
| Packaging Role | Finished SystemShield kit for staging, shipping, and field installation |
| Assembly Level | Full finished kit built from approved parts and controlled sub-assemblies |
What’s Included
- (1) SystemShield HTAP Connector Sub-Assembly
- (1) #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends
- (1) 12-Position Brass Grounding Bar on Insulated Base
- (1) SystemShield HTAP Mini Hardware Kit
- (4) Black Nylon Zip Tie — 8 in to 12 in
Typical Applications
- Compact HTAP grounding and bonding installations
- Run-to-tap conductor connection packages inside cabinets and enclosures
- Rack, rail, and equipment grounding / bonding layouts requiring a compact prepared kit
- Connector-package staging for field deployment
- SystemShield finished-kit use where a grouped HTAP package is preferred over separately sourced parts
Compatibility
- SystemShield HTAP Connector Sub-Assembly as the primary run-to-tap connector package
- #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends as the included compact conductor assembly
- 12-Position Brass Grounding Bar on Insulated Base as the primary conductor landing point
- Cabinet, enclosure, rack, rail, and equipment mounting points that match the included mini hardware kit thread families
- Square-hole rail installations using compatible cage-nut hardware families, which current rack-hardware references show are commonly offered in 10-32, 12-24, and M6 systems
Built from:
- SystemShield HTAP Connector Sub-Assembly
- #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends
- 12-Position Brass Grounding Bar on Insulated Base
- SystemShield HTAP Mini Hardware Kit
- Black Nylon Zip Tie — 8 in to 12 in
Not intended as:
- A loose-parts assortment without installation context
- A substitute for application-specific engineering review where conductor routing, connector fit, mounting format, or grounding design must be verified
- A claim that the finished kit itself is separately UL listed or UL certified as a complete assembled kit
Installation Notes
- Use the included connector package, conductor, grounding bar, and mounting hardware only where the receiving equipment, mounting environment, and grounding / bonding design match the installation requirements. Because this finished kit contains a compression-tap connection and a compact mixed-hardware sub-assembly, the installer must select the correct hardware and confirm the conductor and connector fit for the actual installation point.
- The included HTAP connector package should be installed with the correct compression tooling and die family for the supplied connector variant. Current matching connector-family listings describe installation with standard compression tools and dies, while the matched cover class is intended for WRD series D-die taps up to 2-1/2 in long and is applied after the connector is fully crimped and inspected.
- Verify conductor routing requirements, connector / die-family match, grounding-bar mounting format, hardware-thread match at each mounting point, and application requirements before installation.
Compliance & Regulatory Information
This finished kit is built from individual component classes that may have their own separate material, dimensional, and product-family characteristics. Components may be UL listed or UL recognized where applicable.
This product should be described as a finished HTAP grounding / bonding kit built from controlled components and sub-assemblies. It should not be described as a UL listed kit or UL certified kit unless that exact complete assembled kit certification exists independently.
Current source material supports the included connector family as a wide-range compression-tap class, the included cover family as an insulating cover for WRD series D-die taps up to 2-1/2 in long, and the included cable-tie family with ANSI/UL 62275, CSA C22.2 No. 62275, and UL 94 V-2 component-family references. Those references support the component classes only and do not by themselves establish a full-kit certification claim.
Final suitability depends on the installation design, the mounted equipment, the selected hardware from within the included mini hardware kit, and the actual grounding / bonding application requirements.
Packaging & Handling
- Protect against conductor damage
- Protect against connector damage
- Protect against cover damage
- Protect against grounding-bar damage
- Protect against mixed-hardware count loss
Store in a clean, dry environment before installation. Do not use damaged conductors, bent connectors, cracked covers, damaged hardware, cracked ties, or compromised grounding bars.
Notes / Limitations
This product is a finished grounding / bonding kit, not a single loose component.
- Final suitability depends on correct installation layout
- Correct conductor and connector match are required
- Correct hardware selection from the included mini kit is required
- Proper installation practices are required
- Actual application requirements must be verified
