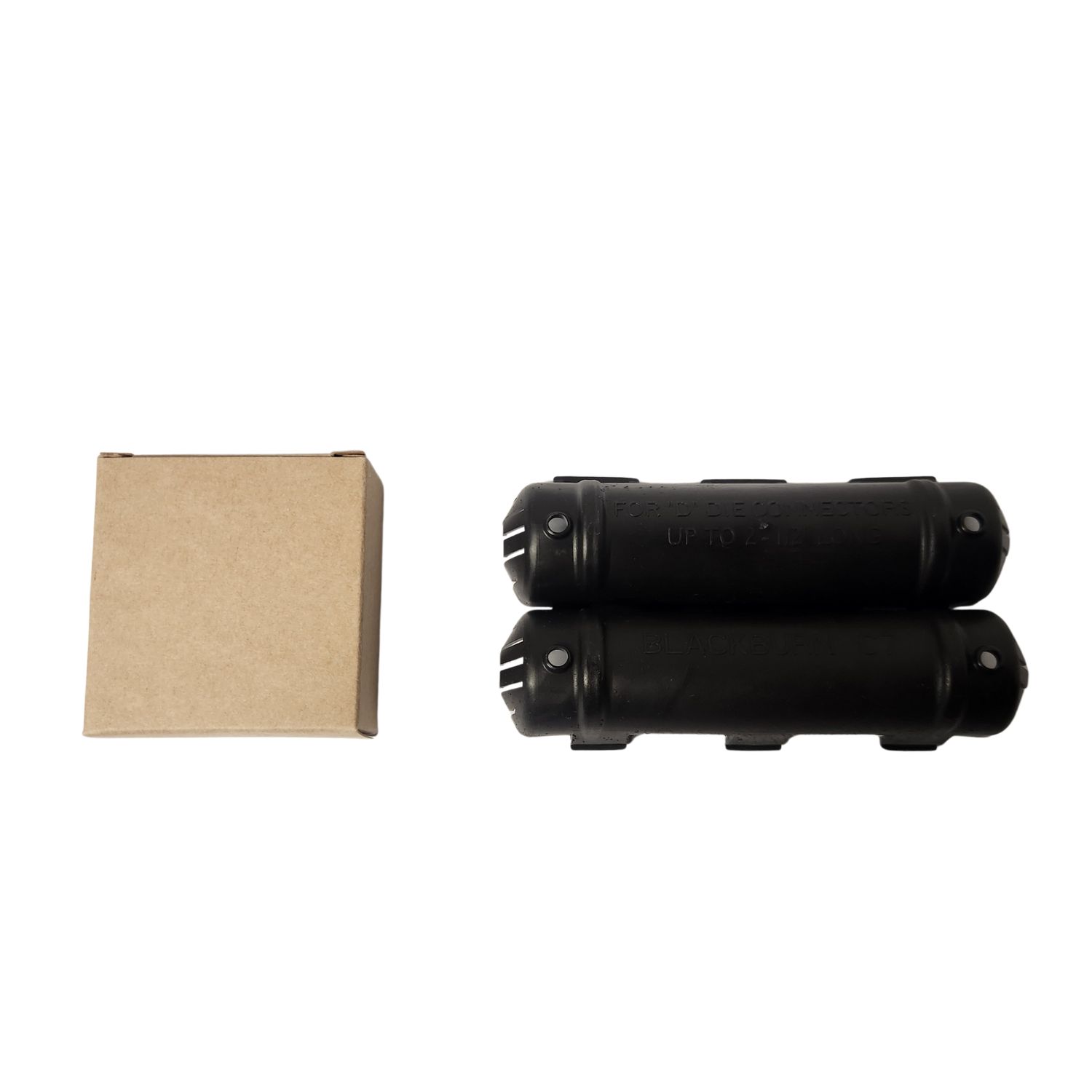

SystemShield HTAP Connector Assembly

SystemShield HTAP Connector Sub-Assembly

Short Description

Pre-grouped connector sub-assembly combining a wide-range compression H-tap and its matched snap-on insulating cover. This SystemShield-controlled sub-assembly is built for compact run-to-tap grounding and bonding connections that require both the compression connector and post-crimp insulating protection.

Product Overview

The SystemShield HTAP Connector Sub-Assembly is a controlled SystemShield connector package that groups the two primary components used in the HTAP connection format into one managed sub-assembly:

• Dual-Rated CU/AL Compression H-Tap — 1/0 Run to 6 AWG Tap
• Snap-On Insulating Cover — Matched to H-Tap

This product should be treated as a SystemShield-controlled connector sub-assembly, not as a generic loose connector listing and not as a direct claim that the entire sub-assembly is one standalone manufacturer product. Its purpose is to keep the matched compression tap and matched cover together as one controlled package for packaging, staging, and finished-kit integration.

Current matching connector-family listings support the compression-tap class as a wide-range aluminum compression tap used for combinations of aluminum and aluminum-copper conductors, with 600 V rating, standard compression tools and dies, formable ribs, fold-in tabs, and reversible construction. That is the correct technical family to anchor the electrical connector half of this sub-assembly.

Current matching cover-family listings support the cover half as a hinged insulating cover for WRD series D-die taps up to 2-1/2 in long, with features including dual rated insulated, eliminates taping, drain ports, and ultraviolet stabilization. That is the correct matched protective-cover class for this sub-assembly.

Taken together, this makes this product a compact, field-relevant run-to-tap connector package that combines the compression connection and the matched insulating cover into one controlled SystemShield sub-assembly.

Key Features

• Controlled SystemShield connector sub-assembly combining the compression tap and matched cover
• Includes both the electrical connector component and its matched insulating protective cover
• Compression-tap half is a wide-range compression H-tap class for run-to-tap conductor connections
• Cover half is matched to WRD series D-die taps up to 2-1/2 in long
• Connector family is described as high-strength aluminum alloy, reversible, and installed with standard compression tools and dies
• Cover family is described as hinged, dual rated insulated, with drain ports and ultraviolet stabilization
• Supports packaging, staging, and finished-kit integration without treating the connector and cover as separate loose parts
• Forms the core connector package used in the finished SystemShield HTAP Kit — 3FT

Technical Specifications

This table is intentionally locked to the matched connector + matched cover class relationship and avoids overreaching into unrelated connector families or overstating conductor-family details beyond what the current sourced family supports.

What’s Included

• (1) Dual-Rated CU/AL Compression H-Tap — 1/0 Run to 6 AWG Tap
• (1) Snap-On Insulating Cover — Matched to H-Tap

This sub-assembly intentionally groups the connector and the matched cover together as one controlled SystemShield component.

Typical Applications

• Grounding conductor tap connections
• Run-to-tap bonding connections inside cabinets and enclosures
• HTAP-based field installations requiring post-crimp insulating protection
• Connector-package staging for larger kit builds
• Finished-product integration into the SystemShield HTAP Kit — 3FT

Compatibility

• Dual-Rated CU/AL Compression H-Tap — 1/0 Run to 6 AWG Tap as the electrical connector half of the sub-assembly
• Snap-On Insulating Cover — Matched to H-Tap as the protective cover half of the sub-assembly
• #6 AWG Green THHN/THWN-2 Stranded Copper — 3 ft — Pre-Stripped Both Ends, when used as the tap-side conductor in the finished HTAP kit context
• SystemShield HTAP Kit — 3FT, where this connector sub-assembly is a primary included sub-assembly
• Grounding and bonding installations requiring a compact run-to-tap compression connection with matched insulating protection

Not intended as:

• A grounding bar substitute
• A complete finished kit by itself
• A universal fit for every compression connector geometry outside the matched WRD-series / D-die / 2-1/2 in cover class

Installation Notes

1. Install the compression connector using the correct compression tooling and die family for the actual supplied connector variant. Current matching connector-family listings explicitly state that standard compression tools and dies are used across the family.
2. Apply the matched insulating cover only after the compression connector has been fully crimped and inspected. Current cover-family listings tie the matched cover class to WRD series D-die taps up to 2-1/2 in long, so connector-family match and connector-length fit must be verified before final installation.
3. Verify connector / die-family match, connector length compatibility, matched cover fit, and application requirements before installation.

Compliance & Regulatory Information

This product is described here as a controlled connector sub-assembly built from a matched compression-tap class and matched insulating-cover class. The current source material supports the connector family and cover family characteristics, but it should not be described as though the entire grouped sub-assembly is one standalone manufacturer-certified part unless that exact complete sub-assembly certification exists independently.

It should be used only as part of a properly designed grounding or bonding system and within the limits of the actual supplied connector and matched cover configuration.

Packaging & Handling

• Protect against connector-body deformation
• Protect against contamination of conductor contact areas
• Protect against cover cracking or hinge damage
• Protect against mixing with unmatched connector-cover variants

Store in a clean, dry environment before installation. Do not use damaged connectors with bent bodies, compromised ribs, distorted tabs, cracked covers, or poor closure fit.

Notes / Limitations

This product is a connector sub-assembly, not a complete finished kit.

• Final suitability depends on correct connector-family match
• Correct die and tooling selection are required
• Correct matched-cover fit is required
• Proper installation practices are required
• Actual application requirements must be verified
