SystemShield Firestop Sleeve — 1″ EMT — Includes Putty & Bushings

Overview

The SystemShield Firestop Sleeve is a clean, repeatable pass-through solution for cable penetrations. A powder-coated clamp pair (Large Face Washer exterior + Cufflink interior) secures the sleeve mechanically while protecting cable jackets with included press-on bushings. This SKU ships with a pre-measured firestop putty pack sized for ~2″ total fill (1″ each side) so there’s no guessing in the field.

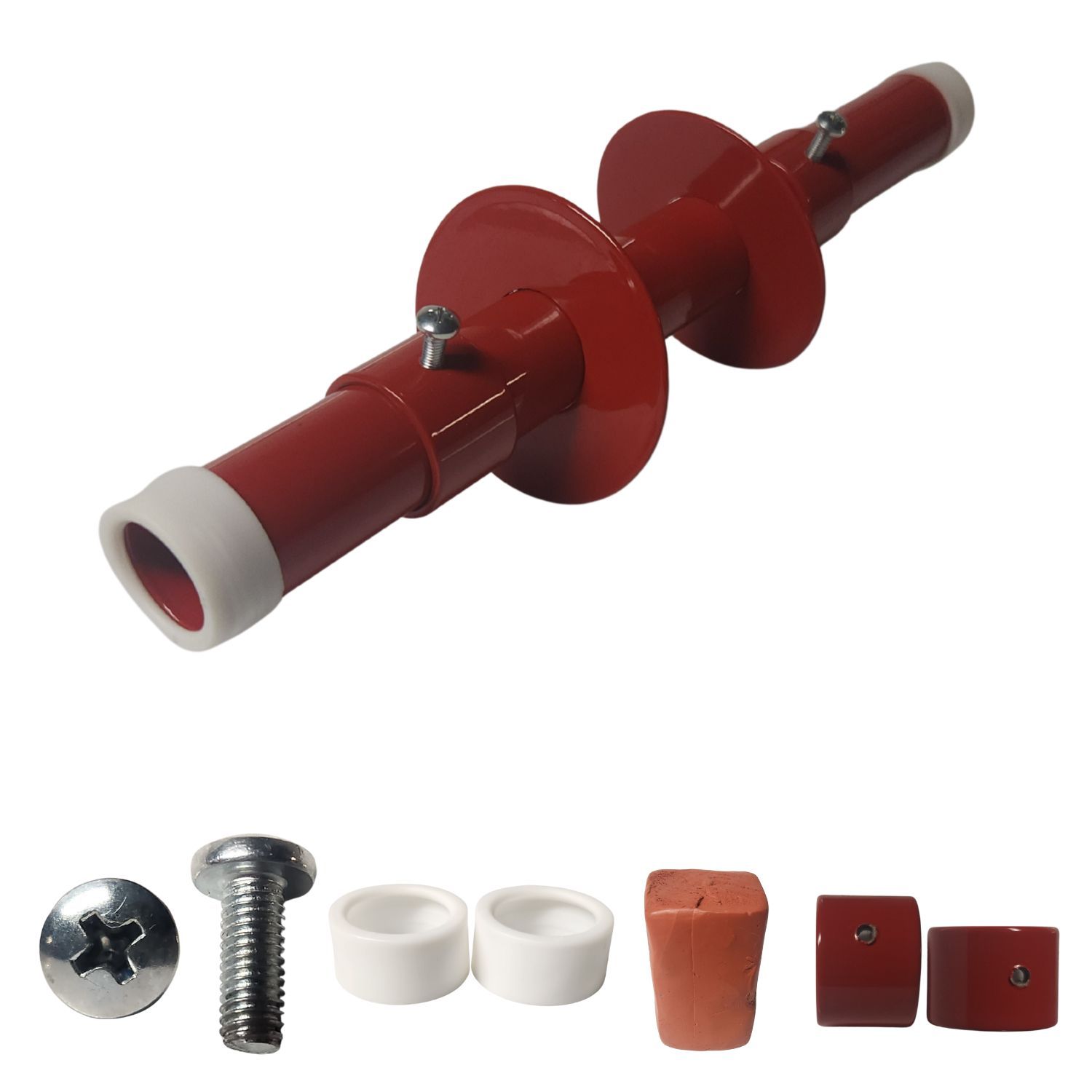

What’s Included (Bill of Contents)

• EMT Sleeve (1 pc) — 1″ trade size EMT, 12.00″ length, deburred ID/OD, square ends
• Large Face Washer (1 pc) — exterior clamp, powder-coated red
• Cufflink (1 pc) — interior clamp, powder-coated red, nominal length ~1.00″
• Firestop Putty Pack (1 set) — pre-measured for one penetration: pack ~1″ from each side (~2″ total) unless project/AHJ requires otherwise
• Press-On Bushings (2 pcs) — snap-fit for 1″ EMT (fits sleeve OD ref. ≈ 1.163″), one per side

Key Benefits

• Consistent field result — controlled sleeve length, deburred edges, and clamp visibility (red)
• Ready to install — putty and bushings included; no separate sourcing needed
• Cable protection — bushings shield jackets at both entry/exit points

Technical Specifications

Sleeve (1″ EMT)

• Material: Galvanized Electrical Metallic Tubing (EMT), trade size 1″
• Cut Length: 12.00″ (tolerance 11.97–12.03″)
• Reference Dimensions: OD ≈ 1.163″, ID ≈ 1.060″, wall ≈ 0.052″
• Edges: ID/OD deburred, glove-smooth; end cuts square and flat
• Finish: Sleeve bare galvanized

Clamp Pair

• Large Face Washer (Exterior): powder-coated red (POST)
• Cufflink (Interior): powder-coated red (POST), target length ~1.00″
• Fit Intent: Live slip-fit on the production 1″ EMT sleeve; minor coating buildup acceptable if assembly remains achievable

Dimensional Controls

RAW (Pre-Coat, reference):

• Face Washer/Cufflink ID (target): ~1.200″ to clear 1″ EMT on trial fit
• Sleeve Length: 12.00″ (11.97–12.03″)

POST (Powder-Coat, Red):

• Face Washer/Cufflink ID: accepts coating build; verify slip-fit on production sleeve
• Surface: uniform red coverage; no runs/puddling that obstruct assembly

Acceptance & Quality Checks (Field-Facing)

No guessing—verify at a glance:

• Length: Sleeve within 11.97–12.03″
• Edge Quality: ID/OD burr-free; finger test safe
• Fit: Face washer + cufflink seat on the actual sleeve without binding
• Coating: Continuous red on clamp parts; no bare metal on intended coated faces/edges
• Putty Depth: ~1″ packed from each side (~2″ total) unless project/AHJ specifies otherwise
• Bushing Engagement: Both bushings fully seated and protecting cable jackets

Applications

• Telecom & ISP: rack rooms, headends, central offices, POP sites, OSP handoffs
• Data Centers: cabinet/cage penetrations, meet-me rooms, MDF/IDF, raised floor feed-throughs
• Industrial & Utilities: PLC/MCC panels, SCADA rooms, process control enclosures, substation comms
• Broadcast & AV: control rooms, edit bays, production racks, stadium/arena suites
• Healthcare & Campus IT: telecom closets, equipment rooms, nurse-call/ELV pulls (per AHJ)
• Commercial Buildings: tenant build-outs, risers, backbone pathways through gypsum/CMU/concrete
• Enclosures & Bulkheads: panel pass-throughs and cabinet wall penetrations where clamp retention and jacket protection are desired

Build Quality

• No guessing on length or fill: Sleeve cut to 12.00″ with a tight 11.97–12.03″ window and a pre-measured putty pack (1″ each side) for predictable results.
• Glove-Safe Edges: ID/OD fully deburred so cables don’t snag and installers don’t get cut.
• Slip-Fit Post-Coat: Red face washer and cufflink maintain a live slip-fit on 1″ EMT after coating; they clamp securely without scuffing jackets.

Production Partner — General Devices (GDI)

Manufactured by General Devices Company, Inc., a vertically integrated OEM metal manufacturer (est. 1953) serving electronics, telecom, medical, aerospace, and industrial markets. GDI provides:

• Precision sheet-metal fabrication with CNC punching/laser, forming, and fixture-backed repeatability
• CNC machining, welding, and complex assemblies built to controlled tolerances
• In-house finishing — powder coat and plating — coordinated for functional fit post-finish
• DFM/DFA engineering support from prototype through scaled production
• Lot-to-lot consistency for uniform dimensional control and surface quality

Compliance Position

Not UL-listed/UL-classified: This product is not a UL-classified firestop system. UL classification applies only to complete, tested assemblies (sleeve, packing/sealant, annulus, substrate, cable mix, and method) that pass standardized fire/endurance tests.

• Quality Manufacturing: Dimensions and finish are held for repeatable fit and field results.
• When UL is Required: Use a UL-classified system such as the Smooth or Split Sleeve systems from UNIQUE Fire Stop Products, or obtain an AHJ-approved Engineering Judgment (EJ) from a qualified fire protection engineer before installation.
• Important: Company credentials and experience do not confer UL classification to custom assemblies.

Alternatives (UL-Classified Systems)

Need a UL-classified sleeve system? Choose the Smooth or Split Sleeve systems from UNIQUE Fire Stop Products (UL 1479-classified; F/T/L ratings per system).

Packaging

• Sleeve, clamp pair, putty pack, and bushings individually protected for finish and cleanliness
• Label includes product name and contact

Support

SystemShield Team
systemshieldgrounding@gmail.com • SystemShield.tech
