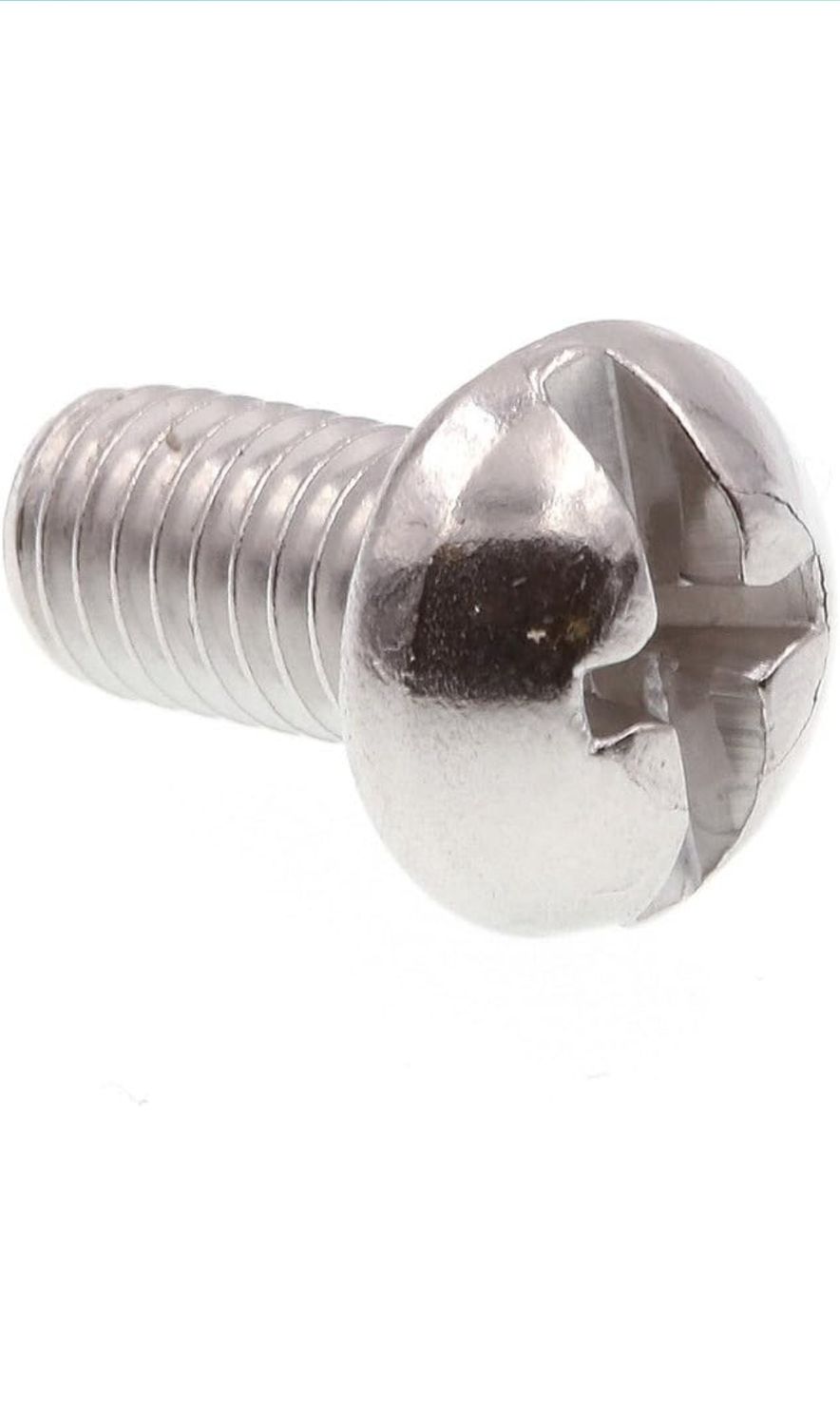

SystemShield 10-24 × 1/2" Phillips Pan Head Machine Screw

10-24 × 1/2 in Phillips Pan Head Machine Screw

Short Description

Steel 10-24 × 1/2 in Phillips pan head machine screw for machine-fastened grounding, bonding, cabinet, enclosure, and equipment assemblies. Matching listings show ASME B18.6.3 machine-screw geometry, 0.190 in major diameter, 24 TPI coarse thread, #2 Phillips drive, and zinc-plated steel construction for general-use corrosion resistance.

Product Overview

The SystemShield 10-24 × 1/2 in Phillips Pan Head Machine Screw is a machine-thread fastener intended for use with tapped holes, nuts, cage nuts, threaded inserts, and similar machine-fastened assemblies. Matching product listings identify this exact configuration as #10 diameter, 24 TPI, 1/2 in length, right-hand, and coarse-thread.

For this size class, matching dimensional references show a pan head with about 0.357 to 0.373 in head diameter and about 0.122 to 0.133 in head height, along with a #2 Phillips drive. Matching listings also identify the base material as steel with zinc plating for moderate corrosion resistance.

This screw format is well suited for cabinet hardware, enclosure mounting, equipment brackets, and similar assembly points where a 10-24 machine thread and a low-profile rounded head are required. Matching listings for this same size also show fully threaded construction and pan head geometry.

Key Features

• 10-24 machine screw thread format with 1/2 in nominal length
• Phillips pan head design for low-profile rounded-head fastening
• Steel construction for general mechanical fastening use
• Zinc-plated finish for moderate corrosion resistance
• ASME B18.6.3 dimensional standard reference
• #2 Phillips drive on matching listings for this size class
• Matching listings show fully threaded configuration
• Suitable for use with compatible 10-24 nuts, threaded holes, and hardware systems

Technical Specifications

What’s Included

• (1) 10-24 × 1/2 in Phillips pan head machine screw
• No washer included
• No nut included
• No locking element included

Typical Applications

• Cabinet hardware mounting
• Enclosure assembly fastening
• Equipment bracket fastening
• Bonding and grounding accessory mounting where 10-24 hardware is specified
• Panel hardware attachment
• General machine-thread fastening in structured assemblies

Compatibility

Compatible with:

• 10-24 threaded nuts, tapped holes, threaded inserts, and cage-nut systems sized correctly for this screw format
• #2 Phillips drive tools sized correctly for this screw class
• Assembly locations designed around #10 machine screw geometry
• SystemShield Standard Mounting Hardware Kit, where this screw is a primary included hardware component
• Grounding, bonding, cabinet, and enclosure assemblies requiring this thread and length format

Not intended as:

• A self-tapping sheet-metal screw
• A wood screw
• A substitute for a different thread system, drive system, or length where exact hardware match is required

Installation Notes

1. Use this screw only in assembly points designed for 10-24 machine threads. Confirm that the receiving nut, cage nut, threaded hole, or insert matches the thread size, pitch, and required engagement length before installation.
2. Install with a properly fitting #2 Phillips driver to reduce drive damage and cam-out risk.
3. Because zinc-plated steel machine screws are general-use fasteners, final torque and joint suitability should be determined by the actual mating materials, hardware stack-up, and application requirements.
4. Verify thread match, length suitability, head clearance, washer or nut requirements, and application requirements before installation.

Compliance & Regulatory Information

Matching listings support this screw format as a steel, zinc-plated, ASME B18.6.3 machine screw configuration. The sources reviewed establish dimensional and material details, but they do not show a separate standalone certification claim that should be carried into this listing as a broader compliance statement.

It should be used only as part of a properly designed assembly and with hardware selected for the actual joint and environment.

Packaging & Handling

• Protect against thread damage
• Protect against drive recess damage
• Protect against plating damage
• Protect against corrosion from improper storage conditions

Store in a clean, dry environment before installation. Do not use damaged screws with deformed threads or stripped drive recesses.

Notes / Limitations

This product is a fastening component, not a complete assembly.

• Final suitability depends on correct thread match
• Correct length selection is required
• Correct mating hardware is required
• Proper installation practices are required
• Actual application requirements must be verified
